(R&D cohesive CNC milling user experiences by providing an operation brochure)

This is intended for simple milling operations that you will use in 90% of the cases
-> Horizontal Roughing and Parallel Finishing

Rhino
Check UNITS and SIZE
  • Units are set to mm
  • Model has the correct size
  • Maximum Model Size forISEL milling: 1350x950x300mm(Tool length)
    PRECIX milling: 2000x1000x200mm(Tool length)

Units are set to mm
Model has the correct size




Create 3 LAYERS
  • STOCK MATERIAL(i.e. full foam block)
  • GEOMETRY(final outcome)
  • MACHINING REGION(where to mill?)
Assign to STOCK MATERIAL layer
  • Volume of the material piece to mill form
Assign to GEOMETRY layer
  • Surface(s) that define your final model. Mustn’t have any holes/openings from top view

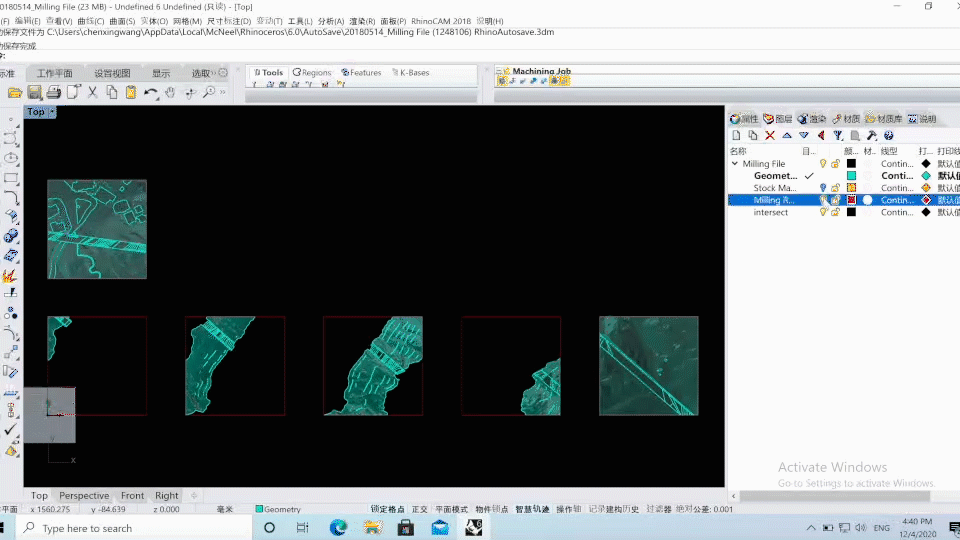

Assign to MACHINING REGION layer
  • Closed polyline(s) that define the area to mill (Can be different for each operation)

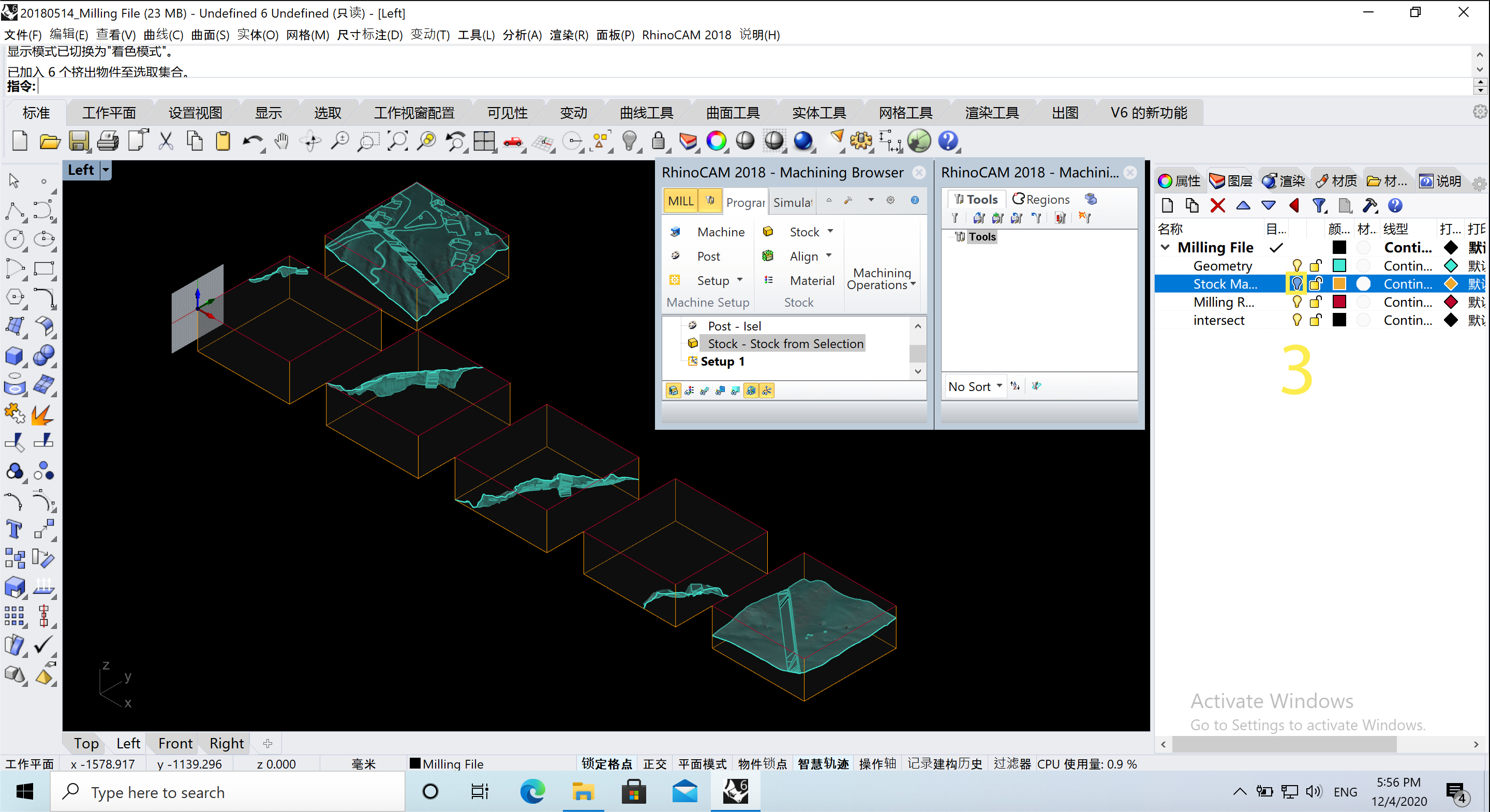

Assign to STOCK MATERIAL layer
Check holes and openings of GEOMETRY layer from top view

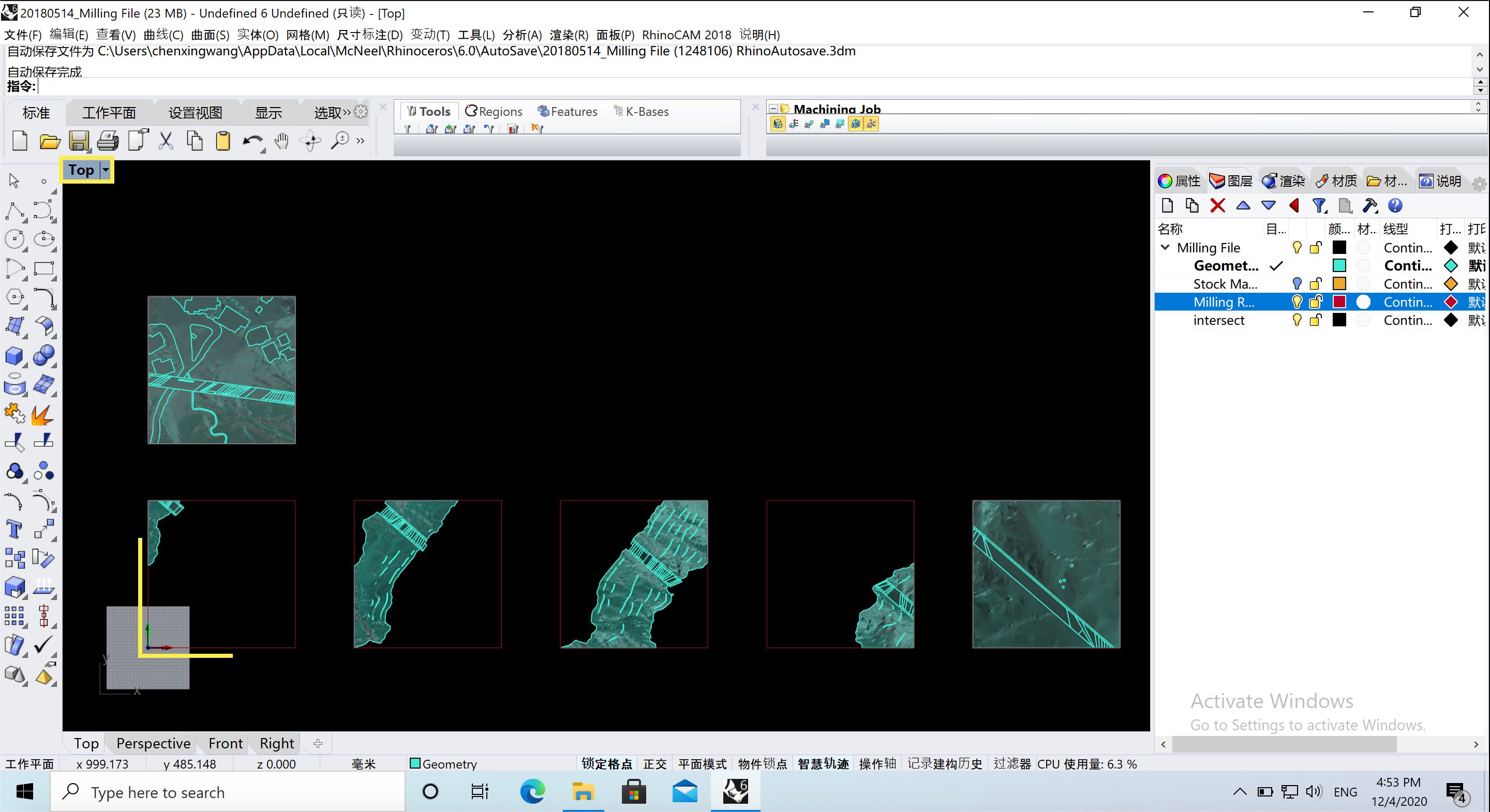

Assign to MACHINING REGION layer




PLACEMENT
  • Place stock material (together with all other geometry) at world zero 0,0,0
    (Make sure you’re not working with a custom CPlane!)
  • In top view world zero has to be at the lower left corner of the material
  • In front view world zero is at the top left corner of the material





Rhino CAM
PROGRAM(Setting up the machine operation)

    1. Define Stock Material(Right click on stock)
  • Box stock(manually define 0-point and box dimensions)
  • Stock from selection(Select objects in stock materials layer->Stock from selection)
  • Turn off Stock Material layer


    2. Horizontal Roughing(HR)-Removing material as quickly as possible
        (Machining Operations - 3 Axis Adv - Horizontal Roughing)


  • Control Geometry: Select closed curves from Machining Region that you want to use for HR
  • Tool: Choose a large tool(ca. 8 - 12mm) that can still access the smaller pockets of your geometry
  • Feeds&Speeds: Use settings from excel file according to the material



  • Clearance Plane: Stock Max + Dist = 6mm
  • Advanced Cut Parameters: Uncheck Arc fitting !
  • Engage/Retract -> nothing to change


  • Cut Levels (step size for roughing):
  • Stepdown Control: Distance (i.e. 6mm for Foam with 12mm Tool)
  • Cut Levels: Bottom (No milling deeper than this Value) 1-2mm above lowest material level


  • Cut Parameters:
    Stepover Distance (Offset btw. paths): less than 1/2 of tool diameter! (i.e. 5mm for 12mm)


  3. Parallel Finishing (PF)
  • Control Geometry: Select closed curves from Machining Region that you want to use for PF
  • Tool: Choose a small tool (ca. 3 - 8mm) that captures most of the detail of your geometry (i.e. courtyards) and doesn’t collide with material in deep valleys!
  • Feeds &Speeds: Use Settings from excel file according to your material
  • Clearance Plane: Stock Max + Dist = 6mm
  • Advanced Cut Parameters: uncheck “Arc fiting” !
  • Entry/Exit -> nothing to change
  • Z Containment-> nothing to change
  • Cut Parameters:
  • Stepover Distance (Offset btw. paths): 1mm

SIMULATE(Simulating the Milling Process and checking for Collision)

  • Always simulate before posting the file!
  • Play - Pause - To End -> For skipping the Visuals
  • Collisions will show as RED parts in the simulation geometry
  • Right click on Setup -> Information -> To view how long will it take?
  • If there are no collisions, proceed to:

POST(Transfer milling path to machine language)

If you post for the first time, you have to change following preferences:
Double click on post -> Post processor should be ISEL or PRECIX -> Edit -> Units must be metric!


  • Post each operation separately by right click on i.e. “Horizontal Rouging”-> Post
  • Naming Convention:
    HR_12Fmm (Horizontal Roughing with 12mm Flat Tool)
    PF_4Bmm (Parallel Finishing 4mm Ball Tool)
  • Names cannot be longer than 8 characters!
  • Output will be .txt File, check if exported completely by scrolling to end-> last line should be “PROGEND”
